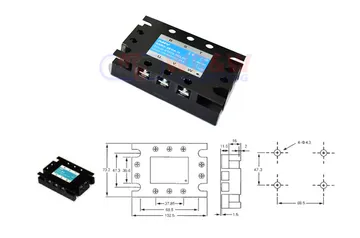

Solid State Relay ANV Three Phase
Features :
- Built-in operation indicator
- High dielectric over than 2.5 KV
- High reliability by S.M.T(Surface Mounting Technology)
- Low EMI/EFI & surge by zero cross trigger method
- High isolation over than 50M Ω (500 VDC)
- Output snubber circuit protection
| Specification | |||
|---|---|---|---|
| Model | Control Voltage(IN) | Working Voltage(OUT) | Current |
| SSR 3-25AA-H | 80-250V | 75-480V | 25Amp |
| SSR 3-25DA-H | 3-32V | 75-480V | 25Amp |
| SSR 3-40AA-H | 80-250V | 75-480V | 40Amp |
| SSR 3-40DA-H | 3-32V | 75-480V | 40Amp |
| SSR 3-60AA-H | 80-250V | 75-480V | 60Amp |
| SSR 3-60DA-H | 3-32 | 75-480V | 60Amp |
| SSR 3-80AA-H | 80-250V | 75-480V | 80Amp |
| SSR 3-80DA-H | 3-32V | 75-480V | 80Amp |
